XHSZ181 Automatic Acid Value Tester for Insulation Oil Acidity Measurement Instrument

Model NO. : XHSZ181

Certification : CE

Customized : Customized

Color : Yellow

Transport Package : Exported Wooden Case

Trademark : XZH TEST

Origin : China

Supply Ability : 2000PCS/Year

Package Size : 35.00cm * 32.00cm * 31.00cm

Package Gross Weight : 12.000kg

Customization : Available

After-sales Service : After Sale Serive

Warranty : 12 Months

Shipping Cost : Contact the supplier about freight and estimated delivery time.

: Support payment in USD

Secure payments : Every payment you make at Made-in-china.com is protected by the platform.

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Contact Now

XHSZ181L(6 cup) / XHSZ181S(3 cup)

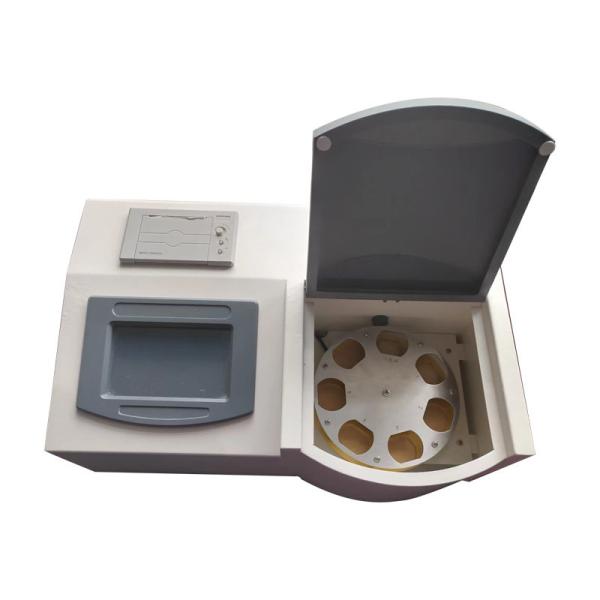

XHSZ1811L oil acidity tester is a colorful screen automatic measuring instrument for accurately detecting the acid value of insulating oil. XHSZ1811L oil acidity tester improves the working efficiency and test accuracy, and reduces the operator's contact with samples and reagents, maximum protection of their personal safety.

Main features
1. When measuring, just inject the sample into the sample cup, place the sample cup in the sample cup hole, the instrument will automatically search for the sample, extract injection and blank value titration, measurement, automatic cleaning, shutdown, display printing Results and other operations.
2. One to six samples can be measured at one start, which is convenient to use and high efficiency.
3. XHSZ1811L oil acidity tester is equipped with standard acid and calibration procedures for calibration instruments. Users can calibrate the instrument and neutralizing solution at any time to overcome the defects of the concentration change of the neutralizing solution.
4. The instrument automatically deducts the background value of the extract, which overcomes the influence of the change in the background value of the extract on the result. This makes the test results more accurate and reliable.

Main Technical Parameters
Test range: 0.002 ~ 1mg KOH / g
Measurement error: ≤ ± 0.005mg KOH / g
Reproducibility: ≤0.005mg KOH/g
Applicable temperature: 10 ° C ~ 45 ° C
Applicable humidity: ≤85%RH
Power supply: AC220V/50Hz
Power: 50W

All interfaces will be made and displayed in English after your ord

Packaging: Wooden case filled with foamShipping: by Air, Sea, Express, etc.

Shipping time: 7-15 days if it's in stock.
XHSZ181 Automatic Acid Value Tester for Insulation Oil Acidity Measurement Instrument

XHSZ181 Automatic Acid Value Tester for Insulation Oil Acidity Measurement Instrument

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
