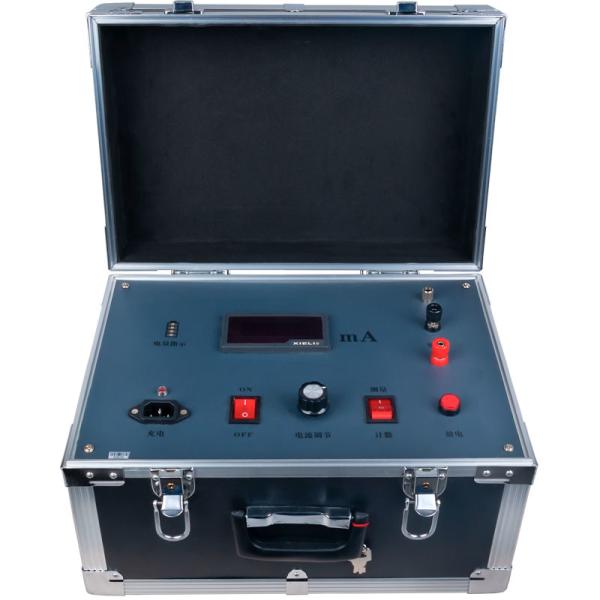

Lightning Arrester Monitor Calibrator for Substation Safety Testing

Name: Lightning Arrester Monitor Calibrator for Substation Safety Testing
Brand: XZH TEST
Price: 1 USD

Wholesale Lightning Arrester Monitor Calibrator for Substation Safety Testing from china suppliers

Brand Name : XZH TEST

Model Number : XHJS401A

Certification : CE/ISO

Place of Origin : China shanxi

MOQ : 1 Unit

Payment Terms : T/T

Supply Ability : 1000 units per year

Delivery Time : 5-8 work days

Packaging Details : wooden packaging

Contact Now

China Manufactured Arrester Monitoring Calibrator

Lightning arrester monitors are widely used in substations throughout China, where their operational status directly impacts power system safety. These monitors track lightning arrester actions and leakage current. However, poor sealing can allow moisture ingress, leading to component rust and inaccurate readings. Annual inspections are mandated by regulations, making this calibrator an essential tool for maintenance.

Main Features

Monitor count verification (on-power/off-power)
Ammeter accuracy verification (on-power/off-power)
True RMS measurement with excellent stability
Strong anti-interference capability during online operation
Standard sine wave output for consistent verification results
Built-in battery for convenient field use
Product Parameters

Power supply	Built-in battery 4Ah 12V
Output frequency	55Hz
Output current	5mA/10mA (can be customized)
Resolution	0.001mA
Current accuracy	0.5%±3 words
Inrush current	50A ~ 100A (instant)
Impact voltage	DC 1000V
Action count	1 ~ 2s / times
Action number	Cyclical measurement
